Product Name:

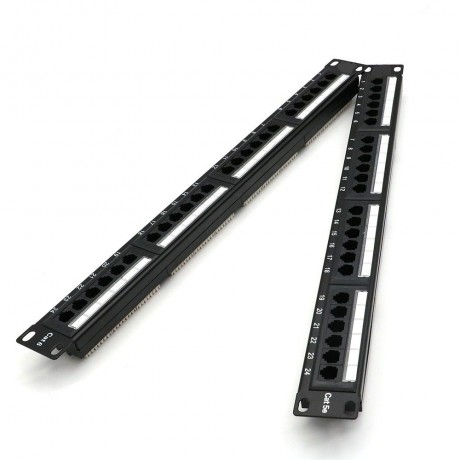

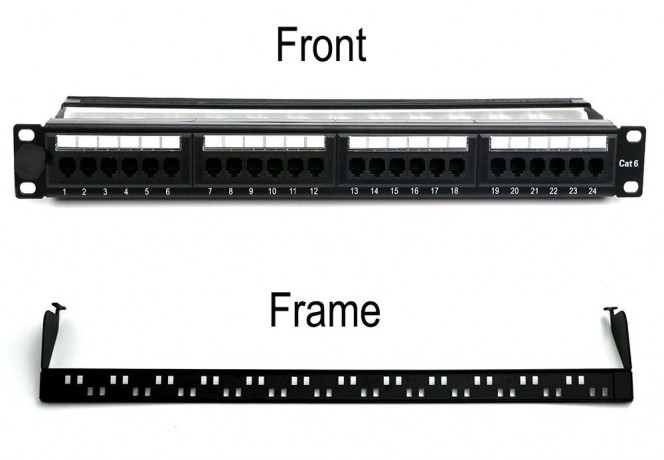

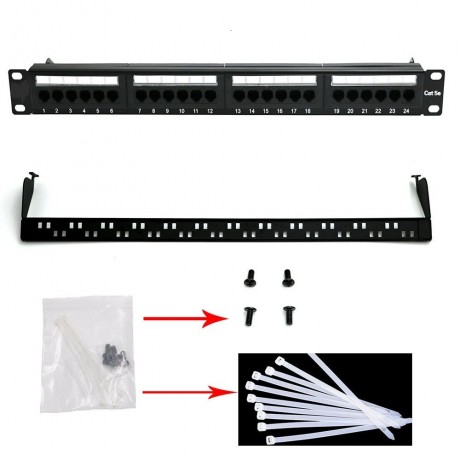

Patch Panel 1u 19'' 24 Ports RJ45 Cat5e /CAT6 UnshieldedFluke Test
Features:
1. Designed for use with Cat5e UTP Patch Cables
2.12/16/24/32/48 Ports available
3. Meet ANS/TIA/EIA 568B. 2. ISO/IEC 11801&EN501734. IDC contract material:Phosphor bronze with tin plating over nickel
4. Angle: 90/180 Degree
5. IDC: PC UL94V-0, white color. 110/krone/110 & krone Dual Use IDCavailable
6. With support hole for cable ties9. Metal sheet: Corrosion resistant streets.
7.19"metal plate housing, black color painting
Technical specifications:
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins; Shieldingshell of the RJ45 jack: Brass housing with nickel-plated. IDC clip: Tinnedphosphor bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCCports inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tools: Standard LSA tool.
6. Testing condition of transmitting capability: 100MHz.
