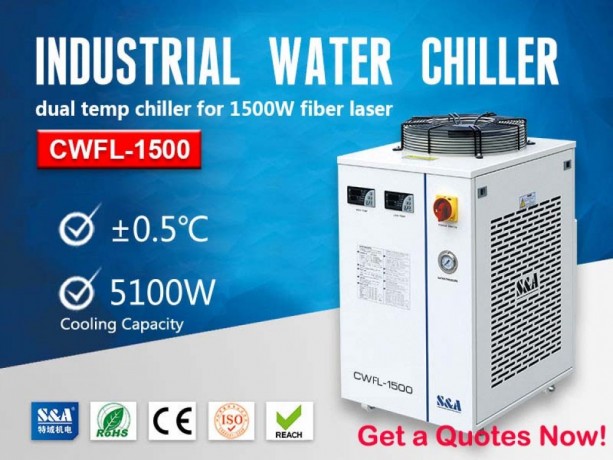

Lasercooling machine CWFL-1500 isthe refrigeration type water chiller produced by Guangzhou TeyuElectromechanical Co., Ltd (also known as S&A), a professional China-based waterchiller manufacturer with16-year experience. It is specially designed for cooling 1500W fiber lasermachines.
S&Afiberlaser water chiller CWFL-1500features the cooling capacity of 5100W and precise temperature control of ±0.5℃, which can cool down the fiberlaser very efficiently andeffectively. Being durable, user-friendly with low maintenance and superiorcooling performance, it is very popular among the fiber laser users.
Tomeet different requirements of different users, S&A lasercooling machine CWFL-1500 isdesigned to have intelligent and constant temperature control modes. Underintelligent mode, the water temperature can automatically adjust itselfaccording to the room temperature (the water temperature is generally 2℃ lower than the roomtemperature), which greatly avoid the generation of condensed water.
S&Afiberlaser water chiller CWFL-1500is cost saving and space saving, for it has high and low temperature controlsystem which can cool the fiber laser device and the QBH connector/opticssimultaneously. It is ISO, CE, RoSH, REACH compliant and under 2-year warranty.
CWFL-1500laser cooling machine video:
https://www.teyuchiller.com/dual-temperature-controlled-refrigerating-chiller-cwfl-1500_n44
CWFL-1500fiber laser water chiller specification:
Voltage:220V;Frequency: 50/60Hz; Refrigerant: R-22 /R-410a
Pumppower: 0.05KW; Tank capacity:15L
Max.lift: 45M; Max. flow: 70L/min
N.W:86Kgs; G.W: 96Kgs;
Dimension: 78 X 47X 89 cm (L X W X H); Packing dimension: 87 X 60 X 109 cm (L X W X H)
About S&A Brand

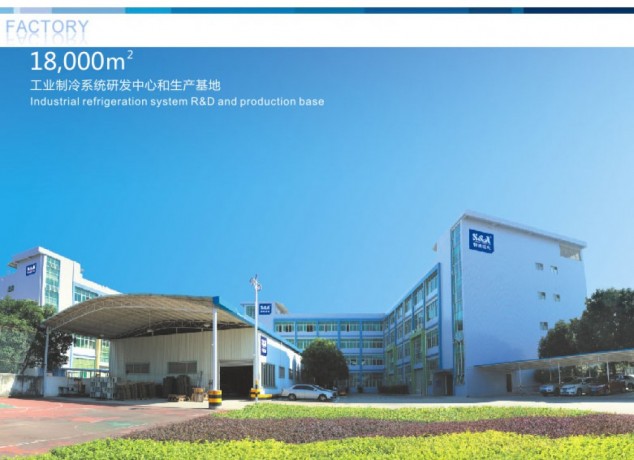

S&A(TEYU)was founded in 2002. After 16 years of developing and producing industrialwater chillers, the headquarter covers an area of 18,000 square meters, and hasabout 250 employees.
Why choose S&A
ProductAdvantages:
1.With 11 patent certificates,ISO, CE, RoHS and REACH compliant; Conforms to airtransport requirements; 2 years warranty
2.±0.1℃ high precision temperaturecontrol, stable cooling performance, support ModBus-485 communication;
3.Establish logistic warehouses at USA and Europe;
ManufacturingAdvantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts ofchiller;
2.Annual output 60,000 units, product exports rate above 60%;
3.Standard bulk production, standard parts rate up to 80% ;
4.With excellent laboratory testing system, simulates actual working environmentfor chiller.
