- STC-HTM
- HTM, the medium size closure among STC series is engineered
and designed to House up to 27mm diameter cables.

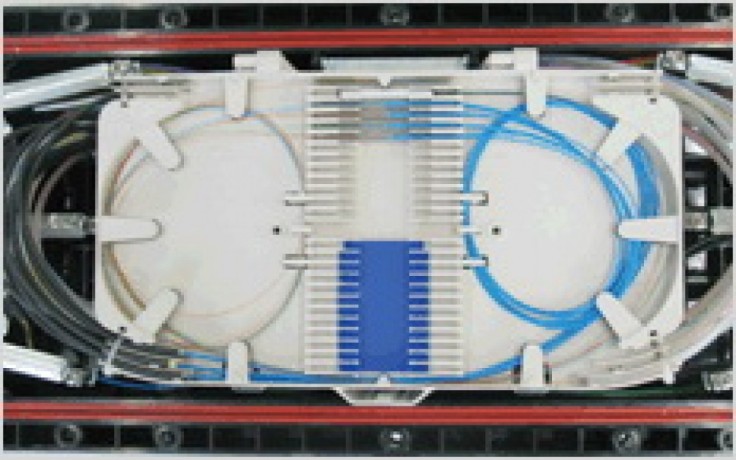

Pre-configured splitters can be installed on The splice trays for
FTTH network. Unique sealing structure of HTM provides Customers
with easy, fast installation and efficient mid-span branch. (IP68)
| Type | Details | Remarks |
|---|---|---|
| External Dimension (WxDxH) | 574 x 222 x 138 (mm) | Packing size: 600x240x170(mm) |
| Weight | 4.55 kg | Include Accessories 6.25kg |
| In-outlet Ports | 6ea | 3 at Each side |
| Tray Capacity | Ea | Single 24 core (Max 48) |
| Cable Diameter | 3mm~29mm | Choose Gasket depending on Cable Diameter |
| Splice Tray | RN splitter acceptable | Mechanical / Fusion |
